LABOMED Lx 300
- 商品編號: 186156
- 商品分類: 研究級顯微鏡

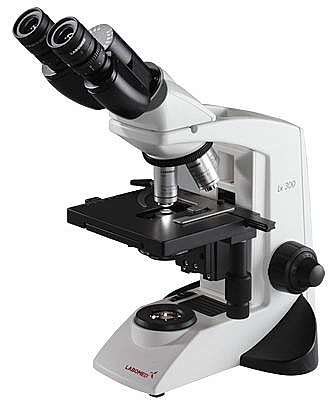

LABOMED Lx300
UPRIGHT MICROSCOPE
詳細介紹
Today's educators call for a classroom microscope that would be ideal for continued education and pre-clincial programs. Demanded is a product with crisp optics, ergonomic features for a mature classroom, and a price point that supports institutional purchases. Provided is the Lx 300, putting all requests to rest.
ADVANTAGES OF Lx 300
A Butterfly style binocular head will enable two distinct viewing positions for users of different heights, thus making the Lx 300 comfortable and versatile in use.
An eco friendly and highly efficient rechargeable LED (approx. 100,000 hours bulb life) serves as a powerful daylight color temperature illumination source that will make bulb change a thing of the past.
EP2 series Infinity Corrected Plan Achromatic objectives provide crisp and accurate images at all powers. The optical system allows for the introduction of digital accessories while maintaining the highest level of performance.
MICROSCOPE SPECIFICATIONS
-
Stand
Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability.
-
Objective
EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal
-
Focusing
Coaxial coarse and fine focus on ball drive system for smooth operation
-
Illumination
Intensity controlled LED (up to 50,000 hours of LED life)
-
Electronics
Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer
-
Eyepiece
Wide field 10x/18mm with foldable eye guards, lockable, antifungal
-
Mechanical Stage
Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.
-
Nosepiece
Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
-
Viewing Body
Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm, IPD 48 - 75mm
-
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides
-
Accessories (Optional)
- Pointers & Micrometer Reticules
- Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
- Dual Viewing Bridge
- Quintuple Position Viewing Bridge
- Auxiliary Objectives and Eyepieces
- Cord Hanger Kit
- Digital Cameras and Adapters
- Soft Carrying Case
