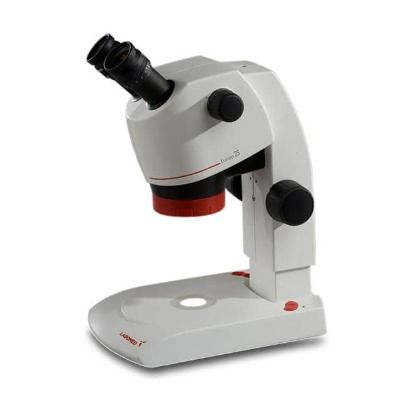

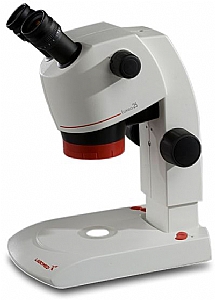

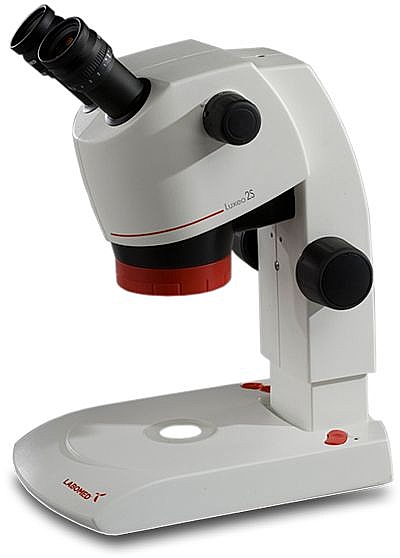

The Luxeo 2S encompasses all the performance benefits of a university level microscope in a highly affordable and durable middle and high school solution. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 2S stereo microscope is perfect for student operation.

ADVANTAGES OF Luxeo 2S

A +/-30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3- LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

Responsive focus and mag-change knobs allow for stress free operation with minimal wear and tear to gears, all of which are made of high-strength steels.

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

MICROSCOPE SPECIFICATIONS

• Working Distance

  100mm

• LED Life

  Up to 25,000 hours

• Object Field Diameter

  18 to 6.0mm or 9 to 4.5mm

• Light Quality

  Homogeneous daylight (6500ºK), free of UV and IR emissions

• Power Supply

  Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer Dimensions (mm) Labomed Luxeo 2S Line Drawing

• Transmitted Light

  3-LED super bright glow screen, low heat emission

• Magnification Range

  10x-30x or 20x-40x

• Eyepiece

  Widefield 10x/18mm (interchangeable)

• Diopter Correction

  + / - 5 diopters

• Incident Light

  + / - 30º Oblique illumination and variable intensity control dial

• Viewing Body

  Integrated Binocular, 45º, 52-74mm diopter adjustment

• Eye Guards

  Rubber, Retractable

• Illumination Control

  Incident / Transmitted (Oblique Settings) / Combined illumination control buttons with rheostat dial for light intensity control

• Optical System

  Greenough

• Magnification

  1X/3X (2-step)

• Incident Light Method

  Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light (5 LEDs)

• Optional Accessories



• Pointers & Micrometer Reticules
• Auxiliary Eyepieces
• Soft Carrying Case

• Camera Adapters

  C-mount adapters 0.3x, 0.5x, 0.7x

• Illumination

  LED Transmitted & Incident

• Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Polarizing Kit
  • Auxiliary Objectives
  • Soft Carrying Case
