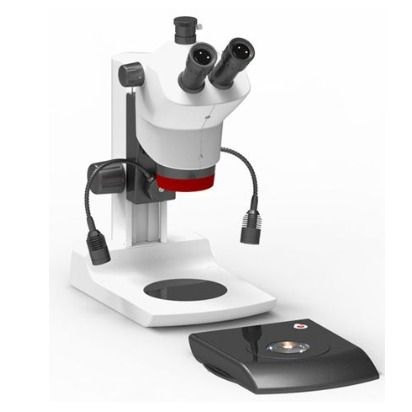

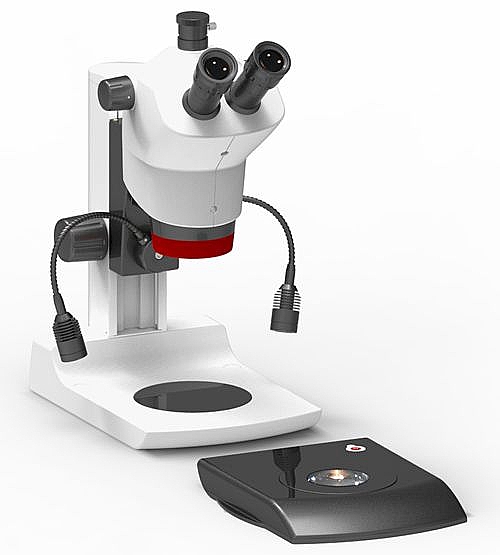

The Luxeo 6Z is the first in a new series of stereo microscopes designed to bring greater flexibility and performance to work stations. With total integration of gooseneck and axial illumination, versatility in transmitted illumination features, and highly ergonomic stand options to choose from, the Luxeo 6Z will delight in every environment.

ADVANTAGES OF Luxeo 6Z

A well-designed 6:1 Zoom system provides ease and comfort in accessing the right resolution. A detent system with magnification stops can be engaged for calibrating systems to processes. MaxLite™ coatings on all optical surfaces reduce glare and improve light homogeneity in the most demanding environments.

Two flexible goosenecks cables are integrated within the focus bracket, creating more clearance for controlling focus drive. A built in 23-LED ring light with sectional controls will enable axial illumination while mitigating surface glare. An intuitive membrane switch cluster makes light intensity control convenient.

A bright LED base light illuminates objects from below. Users can quickly convert the system into a slim-base setup by removing the illumination cartridge. A lever toggles between bright field and dark field transmitted illumination for biological specimen. Flex Arm, Boom Stand, and Slim Base stand options are available.

MICROSCOPE SPECIFICATIONS

• Optical System

  Greenough

• Eye Guards

  Rubber, Foldable

• Illumination Control

  LED ring light with + / - 30º oblique illumination settings with intensity control.
  Front Angle Arc illumination with cluster of 11 LEDs
  Rear Angled Arc illumination with cluster of 12 LEDs
  Dual LED goose neck with intensity control

  All intensity controlled through membrane switch on microscope pod

• Object Field Diameter

  4.4 to 27.50mm

• Auxiliary Objectives (Optional)

  0.5x, 1.0x, 2.0x

• LED Life

  Up to 25,000 hours

• Magnification

  6:1 Zoom Ratio

• Eyepiece

  Widefield 10x/22mm (interchangeable)

• Working Distance

  110mm

• Magnification Range

  8x to 50x Continuous

• Light Quality

  Homogeneous daylight (6500ºK), free of UV and IR emissions

• Power Supply

  Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

• Diopter Correction

  + / - 5 diopters

• Transmitted Light

  Detachable BF/DF(Bright field/Dark field)
  Optional: mirror base for transparent objects

• Viewing Body

  Integrated Binocular, 45º, 50-75mm IPD

• Camera Adapters

  C-mount adapters 0.3x, 0.5x, 0.7x

• Incident Light

  + / - 30º Oblique illumination and variable intensity control through membrane switch

• Incident Light Method

  Maximum intensity (23 LEDs), front angled incident light (11 LEDs), rear angled incident light (12 LEDs)

• Illumination

  LED Transmitted & Incident

• Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Polarizing Kit
  • Auxiliary Objectives
  • Soft Carrying Case
