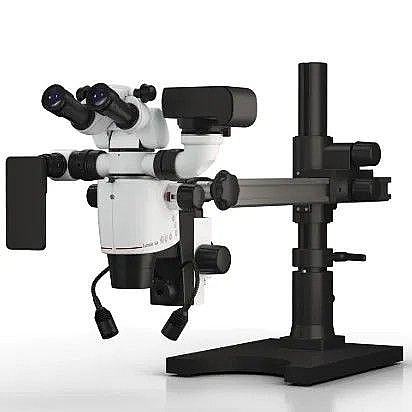

Luxeo 6i delivers state-of-art engineering and design to users most concerned with performance and value. From a fluid zoom control (6:1), bright and efficient co-axial LED illumination with ergonomically placed light controls, and a crisp apochromatic galiliean optical system delivering the highest fidelity image resolution, our team has met the call to deliver the most attractive and valuable stereo microscope for industrial and medical purposes. An optional tilting viewing body makes the system more ergonomic, and a range of stand types promise

ADVANTAGES OF Luxeo 6i

An ergonomic control cluster brings reflected and transmitted LED light controls within close proximity of macro zoom control, making it more intuitive for technicians to quickly switch back and forth without looking away from the eyepieces. Thus ensuring maximum efficiency.

A range of video (DSLR, C-mount, iPhone) accessories and stand types quickly transform the Luxeo 6i for a variety of applications. Plan & Plan-Apo CMO's offer a range of magnification and working distance options.

Choose from our heavy and medium boom stand, dark field / bright field, or pole stand options to suit your workstation. For more embryo detection, an optional mirror base configuration is available.

Co-axial LED illumination offers shadow-free reflected light, expanding the realm of applications Luxeo 6i serves in both industrial as well as animal surgery environments.

MICROSCOPE SPECIFICATIONS

• Auxiliary Objectives (Optional)

  1.0x Apochromat standard
  Optional objectives: Achromats: 0.32x, 0.50x, 0.63x, 0.80x, 1.0x Plan Apochromat: 1.25x

• Magnification

  6:1 Zoom Ratio

• Camera Adapters

  C-mount adapters 0.3x, 0.5x, 0.7x; DSLR adapters for Canon, Sony and Nikon, and iPhone

• Optical System

  Galilean

• Eyepiece

  WF 10x/22mm with foldable eye guards, ±8mm diopter adjustment Optional:12.5x, 16X and 20X eyepieces

• Eye Guards

  Rubber, Foldable

• Light Quality

  Homogeneous daylight (6500ºK), free of UV and IR emissions

• Power Supply

  Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

• Illumination Control

  Incident Light:
  Coaxial light with intensity control
  Dual goose neck for extra illumination

  Transmitted Light: Two options - detachable BF/DF (Bright field/Dark field) base; preconfigured mirror base for transparent objects

  All intensity controlled through membrane switch on microscope pod

• Viewing Body

  Binocular 20°, 49-78mm IPD Optional: 0-210° tiltable ergo head

• LED Life

  Up to 25,000 hours

• Magnification Range

  8x to 50x Continuous

• Object Field Diameter

  4.4 to 27.50mm

• Diopter Correction

  + / - 5 Diopters

• Working Distance

  110mm
