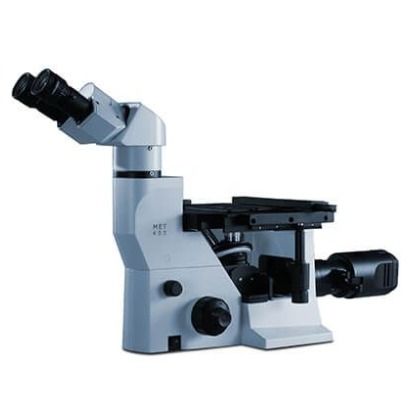

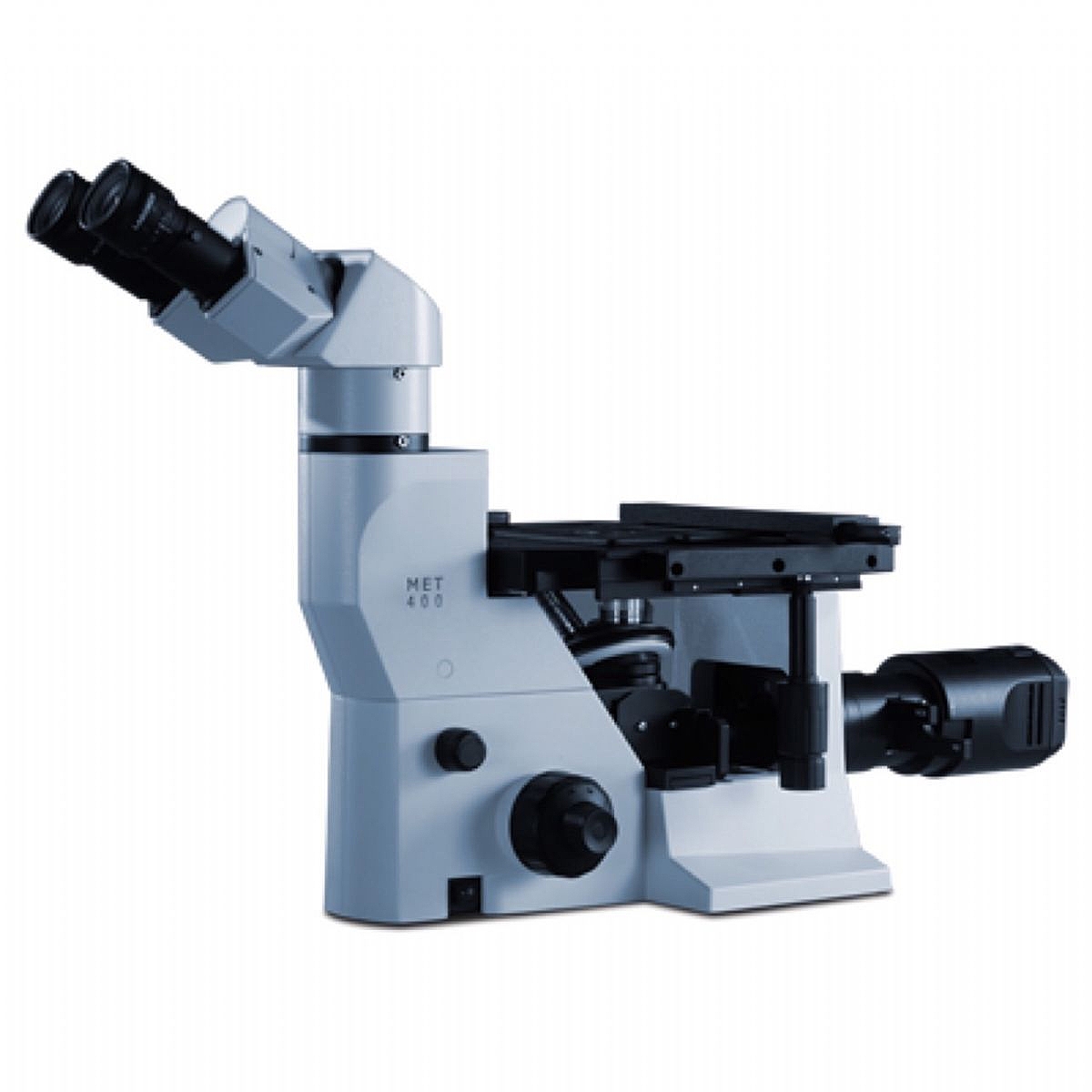

The Labomed® MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.

ADVANTAGES OF MET 400

The ML Infinity Corrected Plan optical series promises image fidelity. Proprietary MaxLite™ coatings deliver superior anti-reflective and scratch resistant properties. Long working distance and efficient design provide for aberration-free imaging. A dry 100x objective is optional.

An ultra bright 6V-30W light source with a high color rendition index faithfully illuminates specimens, particularly those used in color sensitive applications such as photomicrography.

A slide-in polarizing kit with a built-in polarizer/analyzer can be added as an option. providing 360 degrees of light extinction.

MICROSCOPE SPECIFICATIONS

• Optional

  100x Dry objective; Mechanical stage; Adapters for video and digital cameras

• Stand

  Ergonomic sturdy stand made of anti-rust material

• Focusing

  Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2um per division.

• Illumination

  Koehler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100V - 240V universal power supply.

• Stage

  Fixed stage with specimen holder - 3 types (38mm, 55mm, 65mm). Optional mechanical stage.

• Electronics

  Universal power supply (110V-240V) with built-in voltage stabilizer

• Viewing Body

  Siedentopf Binocular or Trinocular head; 30° inclined, fixed; IPD 52- 75mm.

• Optional Accessories



• Pointers & Micrometer Reticules
• Phase and Fluorescence Kits
• Auxiliary Objectives and Eyepieces
• Digital Cameras and Adapters
• Soft Carrying Case

• Eyepiece

  Focusable Wide Field eyepieces 10x/22mm, with foldable eye guard, antifungal.

• Nosepiece

  Reverse angle quadruple nosepiece with click stops and rubber grip.

• Objective

  ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective.
