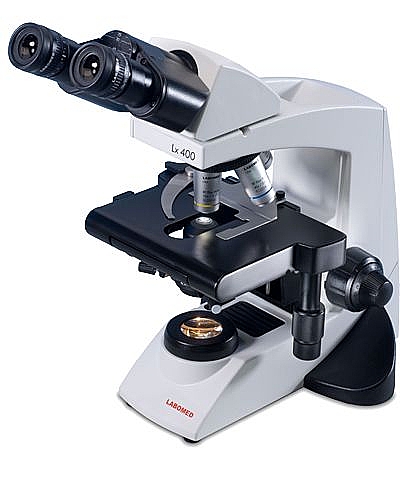

Designed for scaleability, the Lx 400 can take on a broad range of applications and curriculum requirements. Reflecting innovations in optical and illumination design as well as mechanical breakthroughs, the Lx 400 delivers unparalleled performance to price value to an expanding list of delighted users.

ADVANTAGES OF Lx 400

A fluid focus drive and low positioned X/Y slide scanning controls promise comfort. A Rackless stage ensures user safety and maximum workspace utility.

RP series Infinity Corrected Plan Achromatic objectives and Extra Widefield focussable eyepieces provide large and accurate images at every turn. The system is modular for digital, fluorescent, and interference contrast applications.

Highly efficient Halogen (approx. 2,000 hours bulb life) or eco friendly rechargeable LED (approx.100,000 hours bulb life) light sources promise a bright and even field of illumination.

MICROSCOPE SPECIFICATIONS

• Objective

  RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

• Focusing

  Coaxial coarse and fine focusing on ball drive system for smooth operation

• Nosepiece

  Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

• Stand

  Single mold aluminum stand with hand rests for enhanced comfort and stability

• Eyepiece

  Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal

• Illumination

  Halogen 6V-20W/30W or LED (built in rechargeable battery) illumination with variable illumination control. Up to 2,000 hours of Halogen (20W) lamp life and 100,000 hours of LED life

• Viewing Body

  Siedentopf Binocular or Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm

• Condenser

  Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides

• Electronics

  Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer Dimensions (mm) Labomed Lx 400 Laboratory Microscope Line Drawing

• Mechanical Stage

  Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip

• Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
  • Dual Viewing Bridge
  • Quintuple Position Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Kohler Kit
  • Soft Carrying Case
