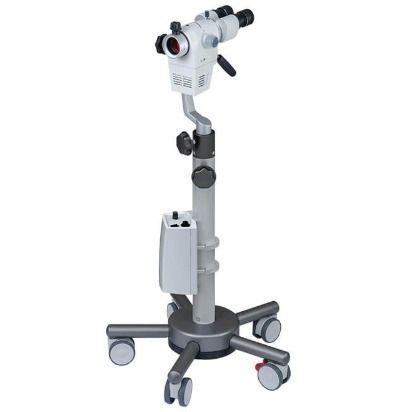

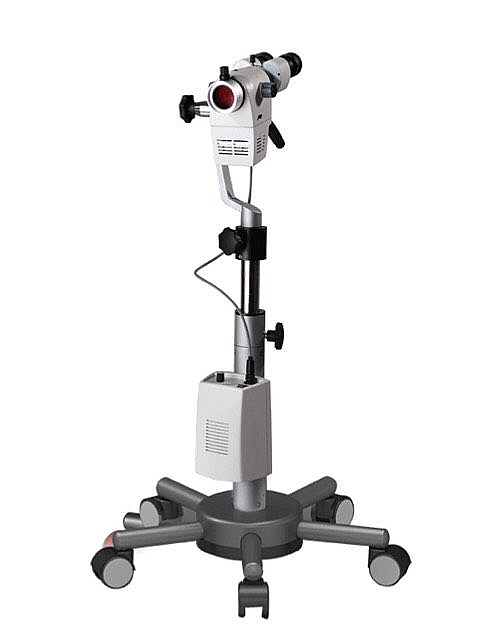

The PRIMA C is a compact and versatile solution for surgical and diagnostic colposcopy. A meticulously designed optical system and built-in high power LED provide for a more streamlined user experience. A compact pole stand keeps the Prima C unobtrusive in tight spaces.

ADVANTAGES OF Prima C

An Apochromatic 5-step optical system produces aberration-free images. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts.

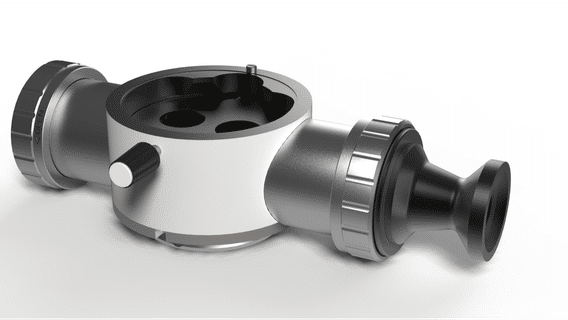

The ProLine™ features a host of digital SLR, video camera, and CCD adapters. Or simply adapt your existing endoscope camera to your colposcope.

A single 27-watt LED illumination system delivers over 75,000 lux at a color temperature of 3700K. Built into the magnichanger, the LED design makes the system compact, running cool and bright for up to 50,000 hours.

MICROSCOPE SPECIFICATIONS

• Built-in-Filters

  Green

• Weight of complete microscope

  Microscope with carrier - 2.8kg Swivel arm - 8kg Base with pillar - 30kg

• Binocular Tube

  Straight 90° viewing tube Optional: 45° inclined

• Eyepiece

  WF 10X/18mm with foldable eye guards, diopter adjustment ± 5mm Optional: WF 12.5X/18mm

• Illumination

  27W LED

• Vertical Movement of arm

  100mm

• Objective

  f-300mm, manual focus

• Apochromatic Magnichanger

  5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X

• Power Supply

  100-240V, 50/60HZ, 1.6 Amp

• Optional Accessories

  ProLine series camera adapters
