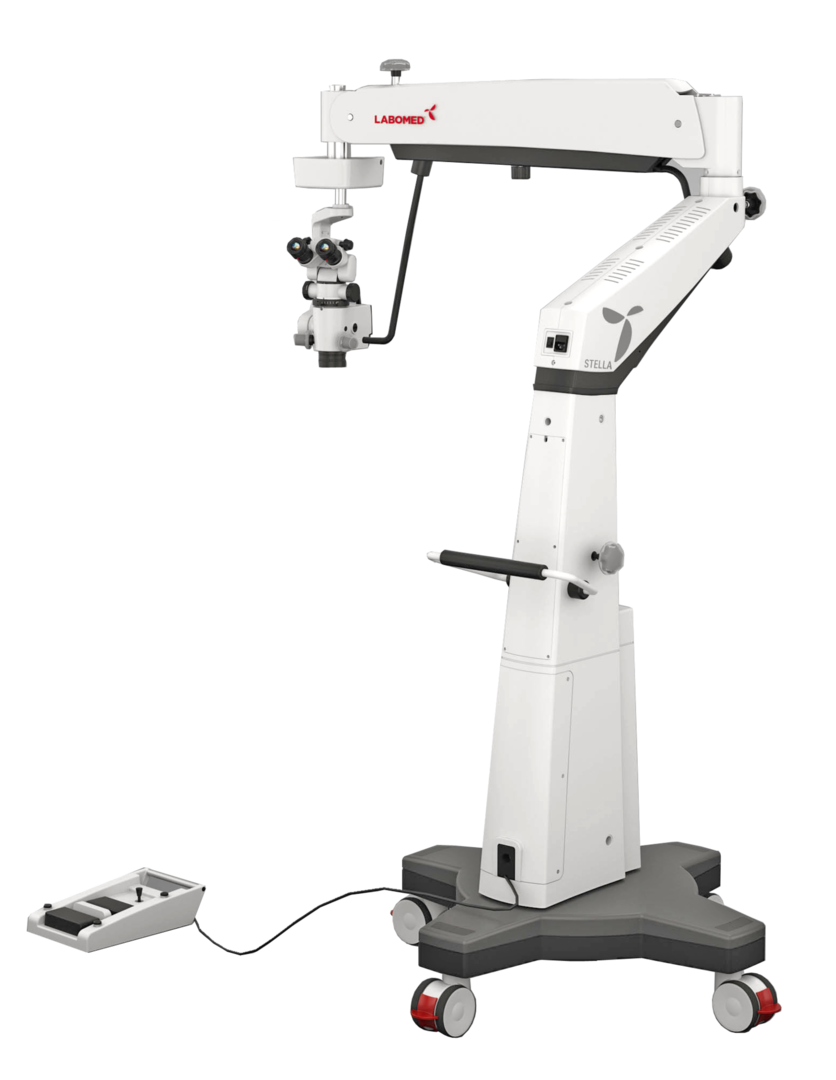

A sturdy workhorse in the most demanding of surgical environments. Built-in modularity and optional filter packages provide added versatility in Ophthalmic retinal and cataract surgery as well as Neurosurgery.  A proprietary pyramidal stand helps quickly offset weight as the arm rotates, keeping the system vibration-free and easy to maneuver. Apochromatic optics, compatibilty with image inverters, and a host of video and ergonomic accessories make Stella a value leader.

ADVANTAGES OF Stella

Optional EZtilt function provides an adjustable viewing angle to accommodate a variety of applications in otolaryngology. Filter packages are available that can be tailored best to suit retinal and cataract procedures in ophthalmology. A well designed RedReflex provides superb contrast in cataract removal.

A bright daylight white LED will provide cool IR & UV free illumination for up to 60k hours. An Apochromatic CMO can be ordered either fixed (f=175mm, 200mm) or variable (f=200-400).

A waterproof 10-way foot pedal will control XYZ positioning along with motorized magnification change and light sensitivity. A novel pyramidal stands helps to offset weight and minimize vibration to provide a perfect balance when maneuvering the system.

• Apochromatic Magnichanger

  Motorized 5-steps: 0.4x, 0.6X, 1.0X, 1.6X, 2.5X; tilt-able with auto lock

• Eyepiece

  Standard: WF 10X/18mm with eye guards Optional: WF 12.5X/18mm with eye guards All eyepieces have diopter adjustment ± 5 mm and diopter lock

• Vertical Movement of arm

  ±300 mm

• Microscope carriers

  10 function wired foot switch for xyz, magchanger & intensity control. Z-axis 40 mm, motorized noise free, 50 X 50 mm XY with auto reset

• Binocular Tube

  0-210° Binocular tiltable head

• Arm

  Swivel 470 mm, Suspension 1000 mm

• Built-in-Filters

  Daylight, blue barrier (yellow filter), fluorescein excitation (cobalt blue), vascular identification (green filter), anti-glare (two spot diaphragm) and retinal protection interoperative viewing modes

• Stand

  Robust "Pyramid" stand for counter balancing, vibration-free base with four lockable castors

• Light Source

  UV & IR free 50W LED

• Objective

  Standard: f=200 mm, Optional: f=175 mm

• Package Contents

  • Tools for Securing Base and Pillar
  • Sterilizable Knob Covers
  • Nylon Dust Cover

• Accessories (Optional)

  • Assistant binocular attachment, Proline range of camera adapters, Smart phone adapters
