Experience optical superiority and mechanical versatility with the LABOMED Prima Lite dental microscope. This compact yet feature-rich system boasts exceptional performance thanks to an Apochromatic optical design and Labomed MaxLite optical coatings that come together to deliver unparalleled image clarity and field homogeneity in dental procedures.

A fluidic arm ensures exacting standards of stability when mounting cameras and accessories for seamless photo documentation and operation free of drift and vibration. And with a modern and streamlined industrial design, Prima Lite will add a pleasing accent to any practice.

ADVANTAGES OF Prima Lite

Bright and homogenous illumination is delivered thanks to an integrated 27W LED illumination system. Meticulous attention was paid to the optical coupling design to minimize light-loss internally. High caliber glass inputs, together with an exacting design standard allow the Prima Lite to deliver supreme efficiency - 100,000 lux with very low power consumption with a 50,000 hour diode life expectancy.

A fluidic arm system that is designed with tension controls tailored to user preference ensure precise drift-free articulation. A microscope carrier arm has advanced counterbalancing technologies that allow the microscope to articulate smoothly however the system is accessorized. Streamlined design ensure the microscope is compact and efficient no matter the space available. And, a "park mode" helps improve the user experience.

Exceptional optical performance comes at all magnifications thanks to a well designed apochromatic optical system, coated with our proprietary MaxLite coatings. Additional modularity comes from our ProLine range of video and ergonomic accessories, including our universal phone adapter for wireless streaming and image/video capture.

MICROSCOPE SPECIFICATIONS

• Eyepiece

  WF 10X/18mm with retractable eye guards, diopter adjustment ± 5mm with diopter lock; optional: WF 12.5X/18mm

• Objective

  f-250 mm with fine focus (standard); Optional: NuVar 7 (f-200-270 mm), objective lens protector

• Microscope carriers

  120° carrier, fluidic movement with dual axial counter balance control and adjustments

• Binocular Tube

  0-210° inclinable ergonomic head with IPD adjustment controls

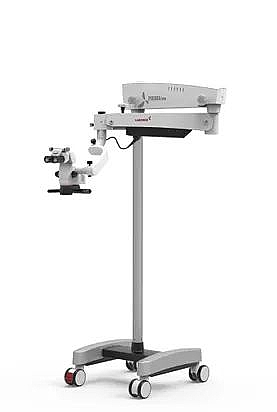

• Stand

  H-base on 4 castor wheels, 2 of which are locking. Magnetically attachable covers for easy replacement. Optional Wall and Ceiling mounts.

• Mounting Options

  Floor stand, wall mount and ceiling mount

• IPD Range

  49-78mm

• Microscope

  Apochromatic 5 step: 0.4x, 0.6x, 1.0x, 1.6x and 2.5x, MaxLite coated optics

• Built-in-Filters

  Yellow (resin curing) and Green (blood free)

• Focusing

  Manual, fine focus controls on objective lens

• Diopter Adjustment

  Both eyepieces, locking

• Light Source

  SuperLux 27W LED built-in to microscope body (no fiber optic cable), 100,000+ Lux, 50,000 hrs rated diode expectancy, 100-240V universal power supply

• Accessories (Optional)

  • Beam splitters (straight/inclined, Rotoplate and/or extender, Proline range of camera/video adapters, Universal phone adapter, NuVar variable working distance objectives, Spacers and extender arms, Monitor mount, Assistant viewer bridge
