LABOMED Atlas+

  • 商品編號: 186159
  • 商品分類: 影像分析系統
  • 已售完補貨中

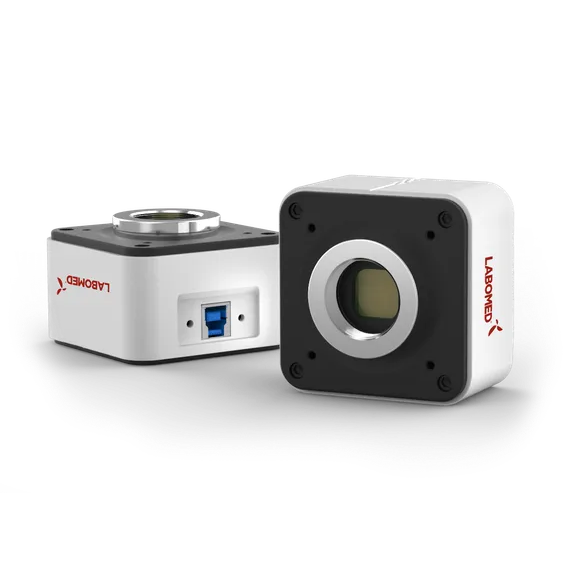

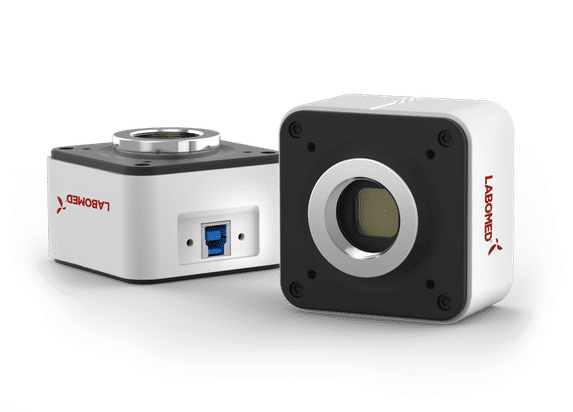

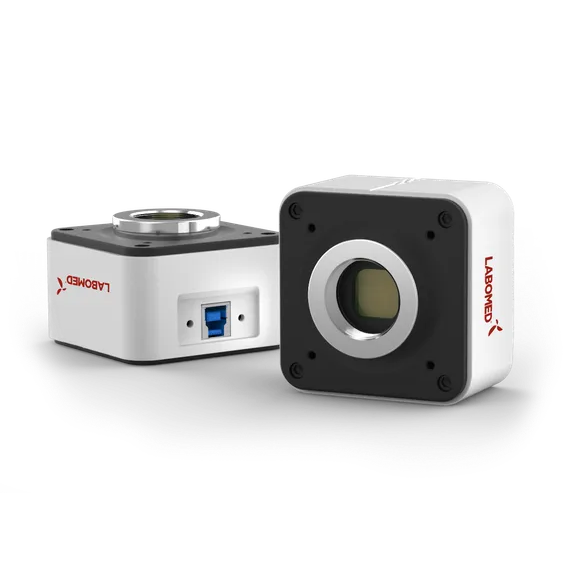

LABOMED Atlas+

CAMERAS ACCESSORIES

詳細介紹

The Atlas camera is a 16 Megapixel digital solution that boasts one of the fastest frame rates per resolution in its class, a high definition image, and unparalleled accuracy in color reproduction. Total vertical integration of camera development means better image quality, easy to navigate software, and better end-to-end software and driver support.



MICROSCOPE SPECIFICATIONS

  • Software Requirements

    Microsoft Windows (XP and later versions) / Linux / Mac

  • Optical connection

    C- Mount

  • Power indication

    Green LED indicating power on and ready for capture

  • Active area

    5.70mm x 4.28mm

  • A/D conversion

    24 Bit RGB

  • Image processing

    High speed FPGA, progressive scan, advanced noise reduction

  • Interface

    USB 3.0

  • Ambient conditions

    Operating Temperature: 0-60˚C Humidity: 45-85%

  • Sensor resolution

    Dynamic 2304x1728 / 4608x3456 pixels Static 4608x3456 pixels

  • Pixel clock

    48 MHz

  • Voltage

    5v2a (USB)

  • Pixel Size

    1.335μm x 1.335μm

  • Exposure

    1ms-1s auto/manual, white balancing, electronic rolling shutter

  • Frame rate

    25 fps (@2304x1728) 5 fps (@4608x3456)

  • Sensor

    1/2.33” 16.0 MP Color CMOS

  • Dynamic range

    59.5 dB; 1800-8000˚K

  • Measurement

    Yes





mounting
