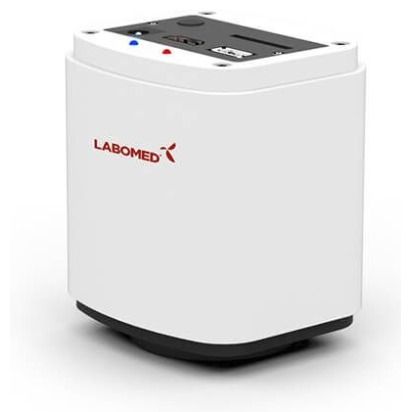

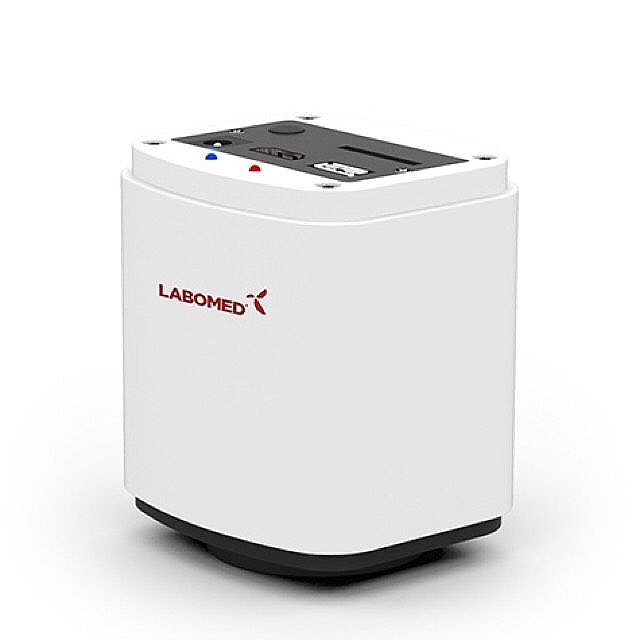

The super resolution Vega camera is a 6 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Additionally, measurement, calibration, and parameter settings may be controlled through HDMI with the help of a USB mouse provided with the system. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.

MICROSCOPE SPECIFICATIONS

• Sensor

  1/2.8” 6.0 MP Color CMO

• Sensor resolution

  Dynamic 1920x1080 pixels Static 3264x1836 pixels

• A/D conversion

  24 Bit RGB

• Interface

  USB 3.0, HDMI, SD card, mouse control

• Active area

  5.70mm x 4.28mm

• Frame rate

  30 fps (@1080p)

• Optical connection

  C- Mount

• Pixel Size

  2.7μm x 2.7μm

• Dynamic range

  65 dB

• Measurement

  Yes

• Software Requirements

  Microsoft Windows (XP and later versions) / Linux / Mac

• Pixel clock

  48 MHz

• Image processing

  High speed FPGA, progressive scan, advanced noise reduction

• Ambient conditions

  Operating Temperature: 0-60˚C Humidity: 45-85%

• Voltage

  AC power (universal)

• Power indication

  Green LED indicating power on and ready for capture

• Exposure

  1ms-1s auto/manual, white balancing, electronic rolling shutter
