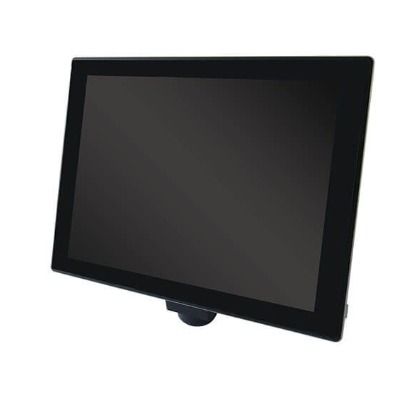

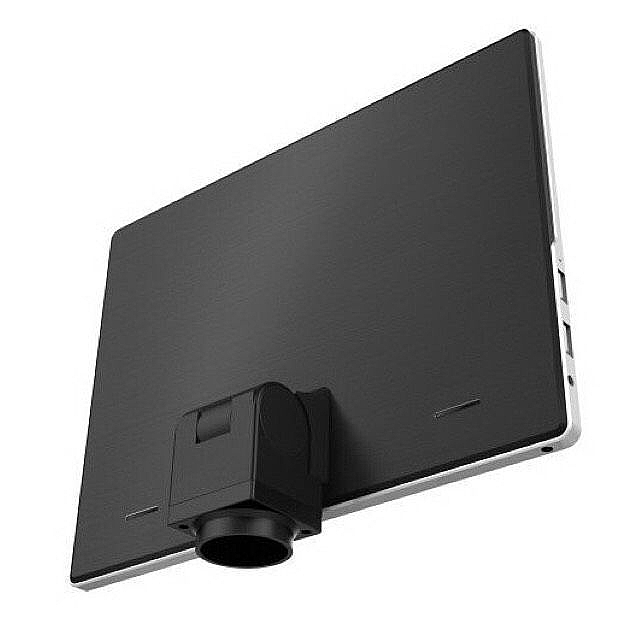

The iVu Touch camera is a 5MP high-definition CMOS solution that integrates the cameras sensor into a compact screen nearly 10 inches in size. A super fast frame rate and superb contrast with high accuracy in color reproduction set this solution apart. HD video streaming, and an SD card interface make the system versatile, with an onboard USB port to control features using a mouse. Additionally, measurement and parameter settings may be controlled directly on screen. This truly is an all-in-one solution.

MICROSCOPE SPECIFICATIONS

• A/D conversion

  24 Bit RGB

• Frame rate

  30 fps (@1920x1080)

• Interface

  USB 2.0, SD card, USB for wifi mouse

• Pixel Size

  2.8μm x 2.8μm

• Image processing

  High speed FPGA, progressive scan, advanced noise reduction

• Pixel clock

  48 MHz

• Dynamic range

  60 dB

• Optical connection

  C- Mount

• Voltage

  DC-12V

• Active area

  5.70mm x 4.28mm

• Sensor resolution

  Dynamic 2304x1728 / 4608x3456 pixels Static 4608x3456 pixels

• Ambient conditions

  Operating Temperature: 0-60˚C Humidity: 45-85%

• Sensor

  1/2.5” 5.0 MP Color CMOS

• Measurement

  Yes

• Exposure

  1ms-1s auto/manual, white balancing, electronic rolling shutter
