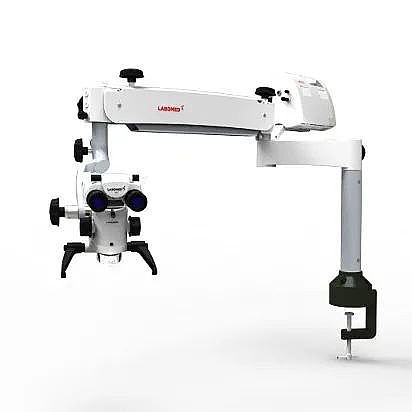

The Prima Trainer is designed for educational and research facilities looking for table-top magnification systems that can provide a long working distance, bright and homogenous LED illumination, and super resolution images all in a compact form factor with fluid maneuverability. Our MaxLite™ coated apochromatic magnichanger promises high color fidelity in three color wavelengths. A well designed arm enables a lower center of gravity, ensuring a well balanced and vibration free microscope that won't monopolize your workstation.

ADVANTAGES OF Prima Trainer

The optional NuVar'' objective delivers variable working distance settings within a focal range of f300-400 mm (or f200-400 mm), making the Prima Trainer more versatile for multi-user workstations.

A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 50,000 hours eliminates the need for frequent bulb changes. The light box easily mounts to the column or swivel arm.

An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLiter'' coatings promise reflection-free, durable optics.

A Rotoplate and Extender Kit make viewing hard- to-see regions of the mouth more comfortable and ergonomic.

The ProLine™ features a host of digital SLR, video camera, and CCD adapters.

The optional NuVar™ objective delivers variable working distance settings within a focal range of f300-400 mm (or f200-400 mm), making the Prima Trainer more versatile for multi-user workstations.

A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 50,000 hours eliminates the need for frequent bulb changes. The light box easily mounts to the column or swivel arm.

An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free, durable optics.

A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.

The ProLine™ features a host of digital SLR, video camera, and CCD adapters.

MICROSCOPE SPECIFICATIONS

• Binocular Tube

  0-210° tiltable ergonomic head

• Vertical Movement of arm

  ± 250 mm, power saving feature with light cut-off in park position

• Built-in-Filters

  Green & Yellow

• Objective

  f-250 mm with fine focus (standard); Options: NuVar with focal length adjustment f-300-400 mm, f-200-400 mm; f-300 mm or f-400 mm with fine focus; f-200 mm fixed objective; objective lens protector.

• Microscope carriers

  120° carrier

• Eyepiece

  WF 10X/18mm with retractable eye guards, diopter adjustment ± 5mm with diopter lock; optional: WF 12.5X/18mm

• Apochromatic Magnichanger

  5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X

• Light Source

  50W LED; 120,000+ Lux

• Mounting Options

  Table mount only

• Stand

  Table mount with C-clamp. Optional table surface mount.

• IPD Range

  49-78mm

• Focusing

  Manual, fine focus control on objective lens

• Package Contents

  • Tools for securing table mount

• Accessories (Optional)

  • Beam splitters (straight/inclined)
  • Rotoplate and/or extender
  • Proline range of camera/video adapters
  • NuVar variable working distance objective
  • Spacers and extender arms
